Ketch XTR Bow Motor Mount

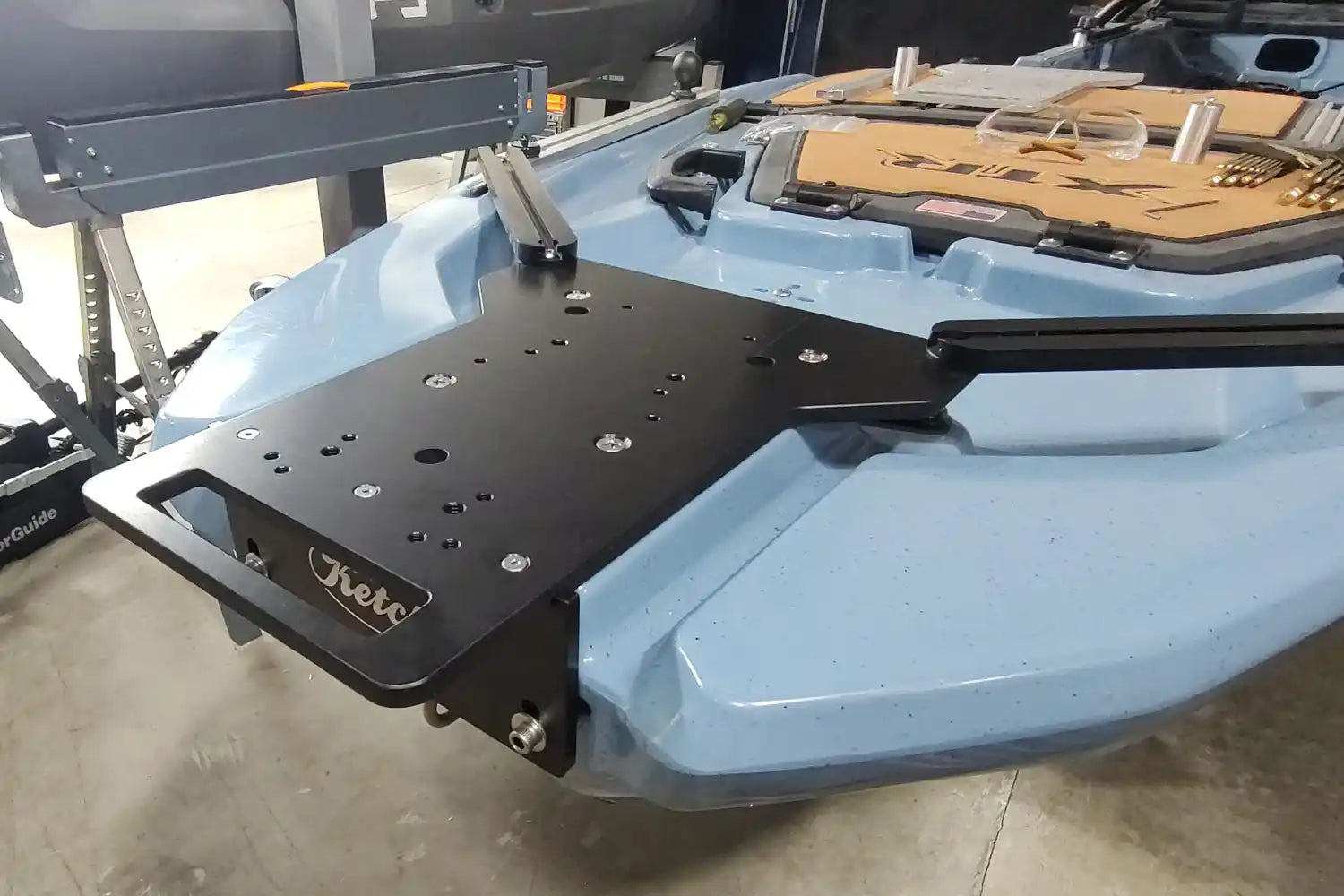

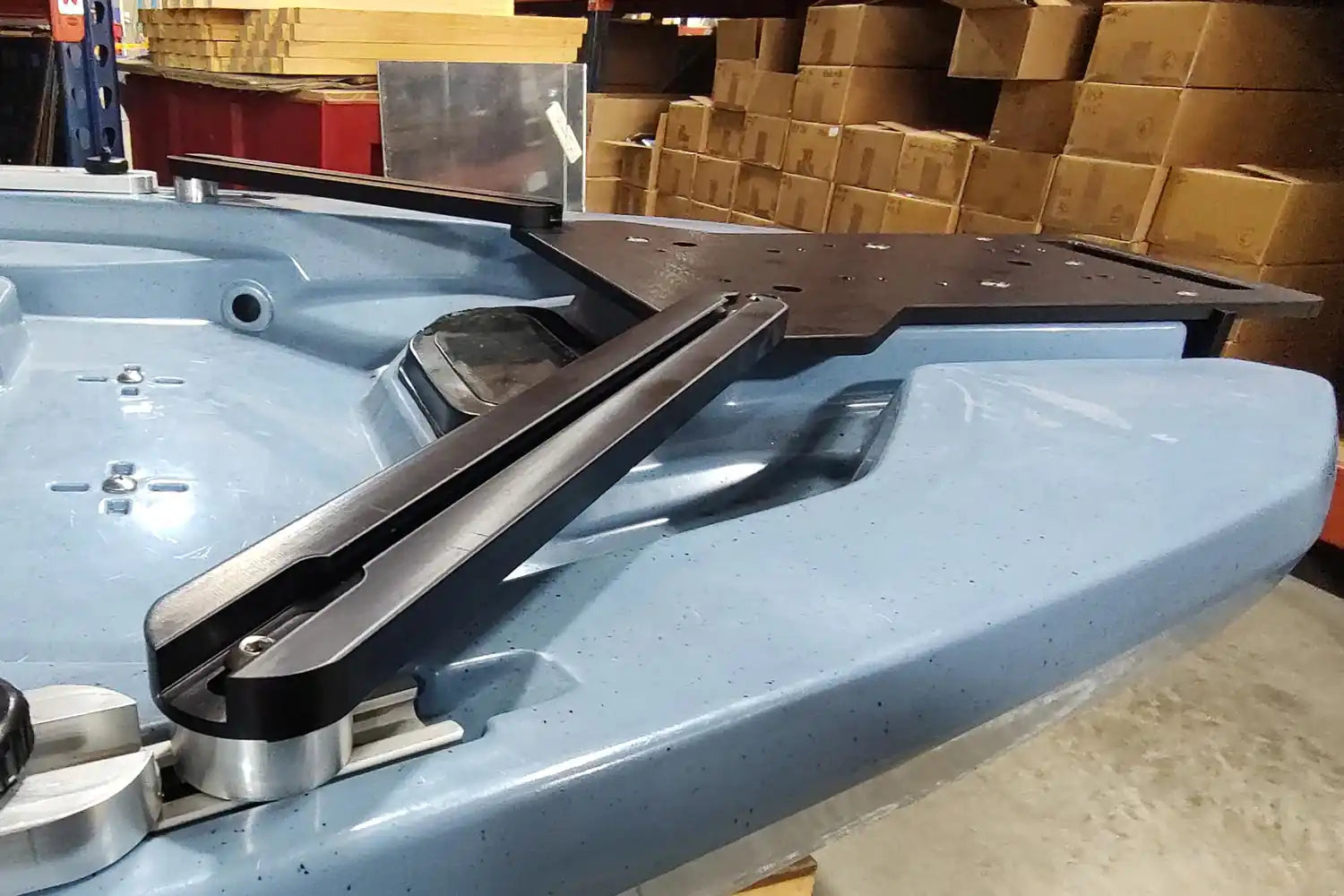

Ketch Precision engineered bow kayak trolling motor mount for the Bonafide® XTR 130 kayak.

The first in our new generation of motor mounts to accommodate higher thrust 24V and 36V bow mounted trolling motors.

For higher thrust applications plastic simply won’t cut it, and if you’d like to remove the flex from your bow and increase the performance and efficiency of your bow mount motor… this is the solution.

Specifically designed to work with Minn Kota, Motor Guide, Lowrance, and Powerpole motors, and braced to handle the extra power like a champ.

Even though this was designed with higher 80# and 110# motors in mind it still works with the popular MotorGuide Xi3 and MinnKota Terrova kayak variants.

• Made specifically for the Bonafide® XTR 130 Kayak
• 100% American Made
• 6061 Aluminum
• Midnight Black Anodized Aluminum finish
• Weight: 5.4lb
• Dimensions: 12″ x 1 5/16″  x 21 1/4″

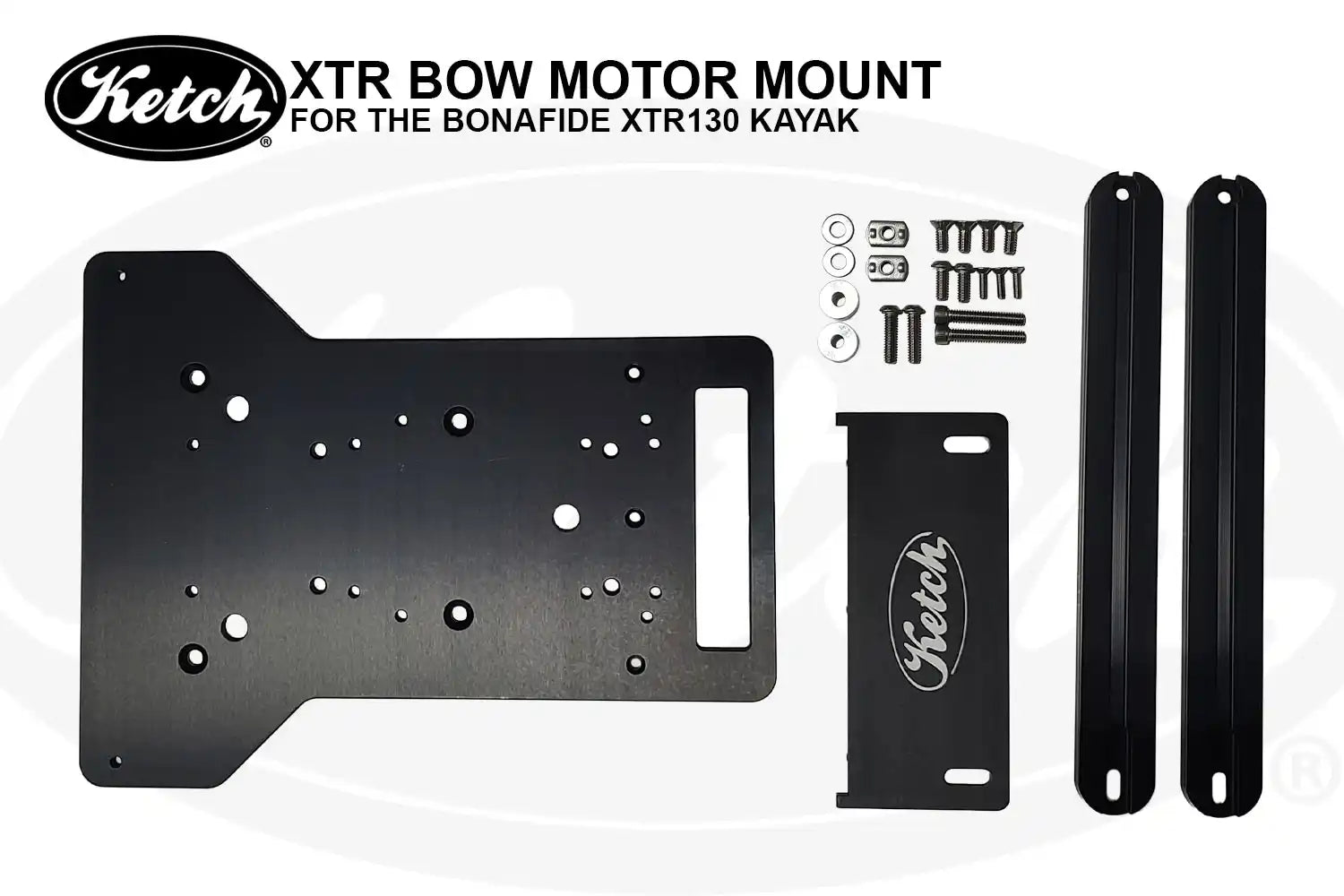

• Included Stainless Steel Hardware (unless otherwise noted):
  – Qty:2,  1/4-20 Spacers (raw aluminum)
  – Qty:2,  1/4-20 x 1 Button Head Hex Drive
  – Qty:2,  1/4-20 x 1.5 Socket Head Cap Screw
  – Qty:2,  1/4-20 x 5/8 Button Head Hex Drive
  – Qty:4,  1/4-20 x 5/8 Flat Head Phillips Screw
  – Qty:2,  1/4-20 Washer
  – Qty:3,  8-32 x 5/8 Flat Head Hex Drive
  – Qty:2,  #10-32 Twin Pilot Spot Weld Nut
  – Qty:2,  1/2″ spacers (raw aluminum)
• Does not include motor or quick mount.
